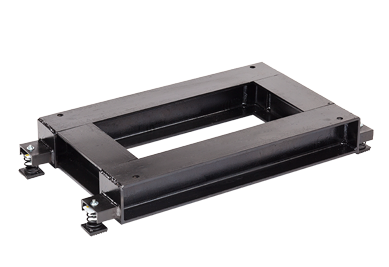

VMC Group WX Special WF Fan Construction Bases with seismic spring isolators are designed with wide flange members and height saving brackets. Integral motorslide rails are incorporated into the base. The depth of the wide flange beam is 1/10th of the longest member. Available with 1"- 5" deflection isolators.
VMC Group's WX Special WF Fan Construction Bases are designed for fan wheel diameters from 12" - 108" and support motors up to 200hp. They are available for single width and double width fans, classes I,II & III. Bases can be fabricated without motor sliderails for use in other fan arrangements without an integral base. VMC Group's WX Special WF Fan Construction Bases help maintain proper drive alignment and resist starting torque. The isolator housings are identical in height within each series and come with easily accessible bolt holes for simplified installation. An elastomeric acoustical cup eliminates high frequency vibration, while color-coded springs permit ease of identification of load capacity. Spring housings have internal adjustments for use in most seismic and wind applications. Their rugged steel housing is designed to handle high wind and high seismic forces up to 2.0g.
When an equipment submittal drawing is provided to VMC Group's Engineering Services Division, a properly designed base or rail drawing, indicating seismic isolator model numbers is produced for customer approval. Once approved, drawings are provided to our manufacturing department for fabrication and shipment.
Features & Benefits
- Integral motorslide rails and height saving brackets
- Available in multiple deflections
- For use with multiple single or double width multi-class fans
- Can be fabricated for fans that do not have an integral base Seismic capacity up to 2.0g
- International Building Code® (IBC) compliant
Applications
- Fans
